Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| item | details |
|---|---|
| start port | guangzhou |
| production capacity | 10000 units/month |
| place of origin | guangdong, china |
| payment | l/c, t/t, alibaba trade assurance, paypal |
| moq | 1 pcs |
| model | ly-hfpl-6 |
| delivery time | within 7 working days |
| certification | iso 9001 |
| brand | oem/lvyuan |

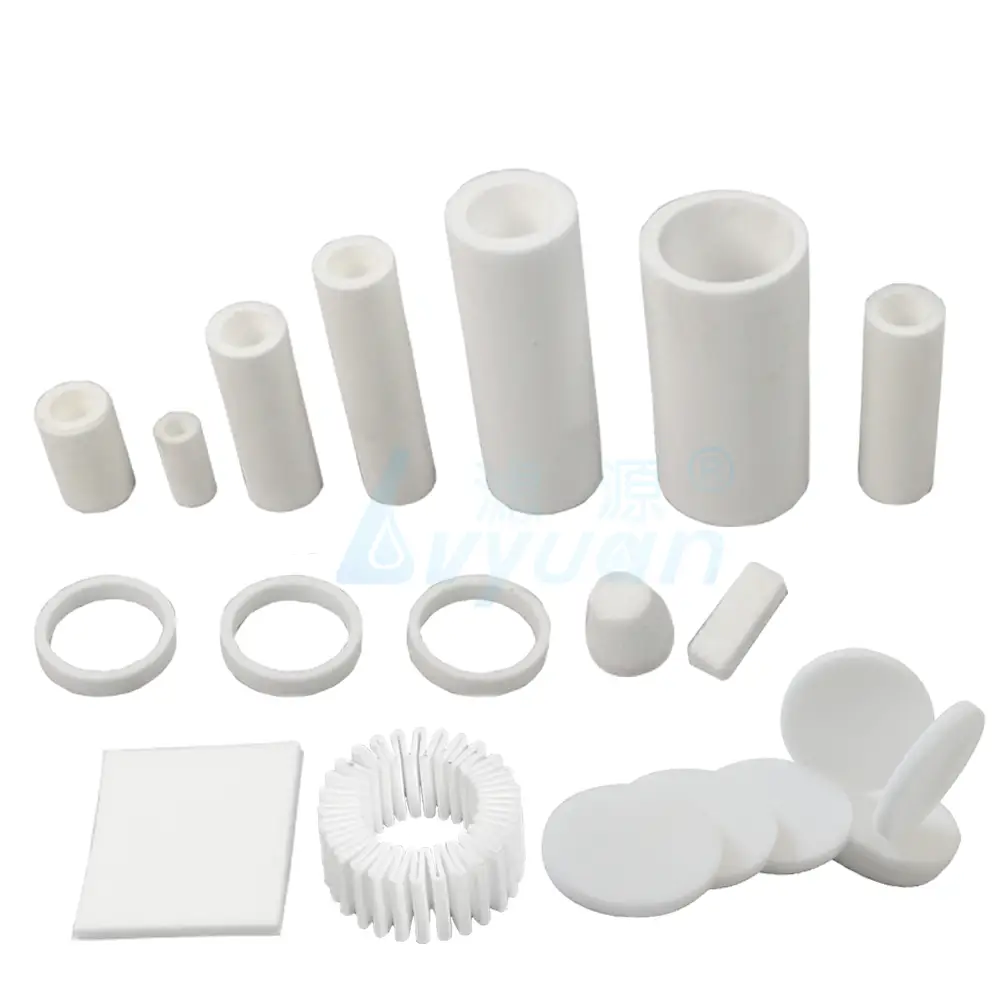

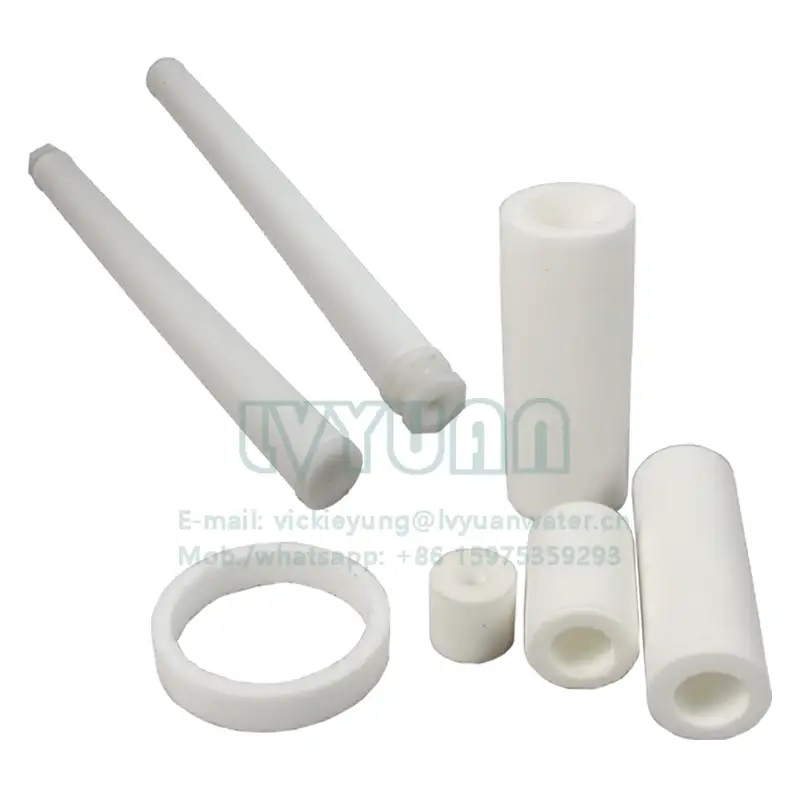

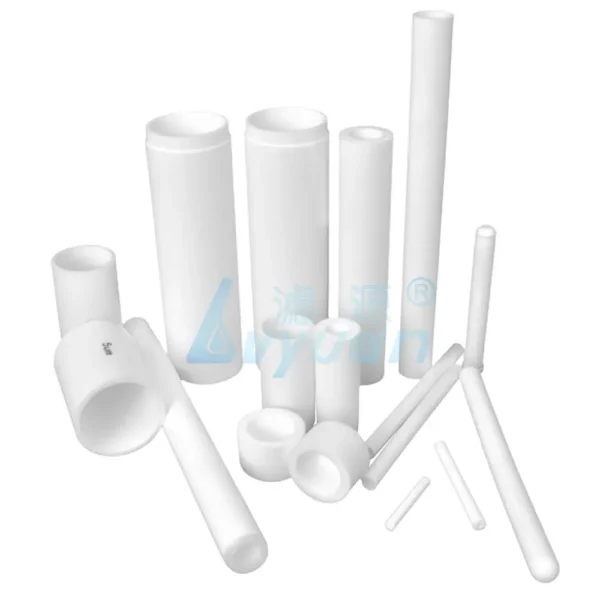

Cylinder Micron Porous Sintered PTFE Water Filter
|
Filter media
|
PE/PTFE
|
|
Connector type
|
Flat, Insert type, Thread type, Fin
|
|
End caps
|
PP, M36, M30, M25, M22, M14, M12 or customized
|
|
Outer diameter
|
10mm, 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, or customized
|
|
Inner diameter
|
12mm.16mm, 18 mm, 28mm, or customized
|
|
Removal rate
|
0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5,10, 20, 25, 30, 50, 60 micron
|
|
Max.operating perssure
|
6.0 bar
|
|
Max.operating temperure
|
≤80℃
|
Features:
1. High porosity(60%) to ensure a greater flow per uint area.
2.Smooth outer surface, impurities are not easy adhesion,back washing easy and thorough;
3. Anti-flouling ability: the small size of the filter so that impurities can’t be retained in the filter body;
4. Resistance to strong acid, alkai corrosion,resistance to orangnic solvents;
5. Excellent mechanical properties
6. No particle release.
1. Pharmaceutical industry 2. Chemical industry
3. Chemical fiber and textile industry 4. Light industry and Food industry
5. Machinery and petroleum industry 6. Wastewater treatment industry
1. 10 years professional manufacturer experience.
2. We provide OEM and ODM customization service,you can find all kinds of filter cartridges and filter housings in our company.
3. All products have quality warranty. Our Certification: CE ISO SGS
4. Our workers are efficient and our sales are professional,we will give the professional customized service.
5. Our products are exporting to more than 100 countries and regions. Received a good reputation.
6. Many cooperator stand by us for many years.
7.We are determined to provide the best service and good quality to our global customers, we will be more and more professional company in the future.
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
