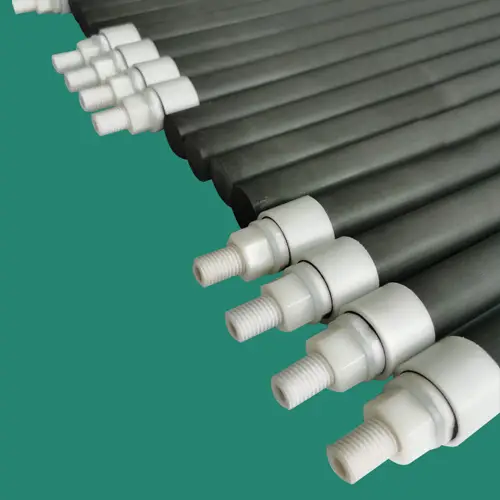

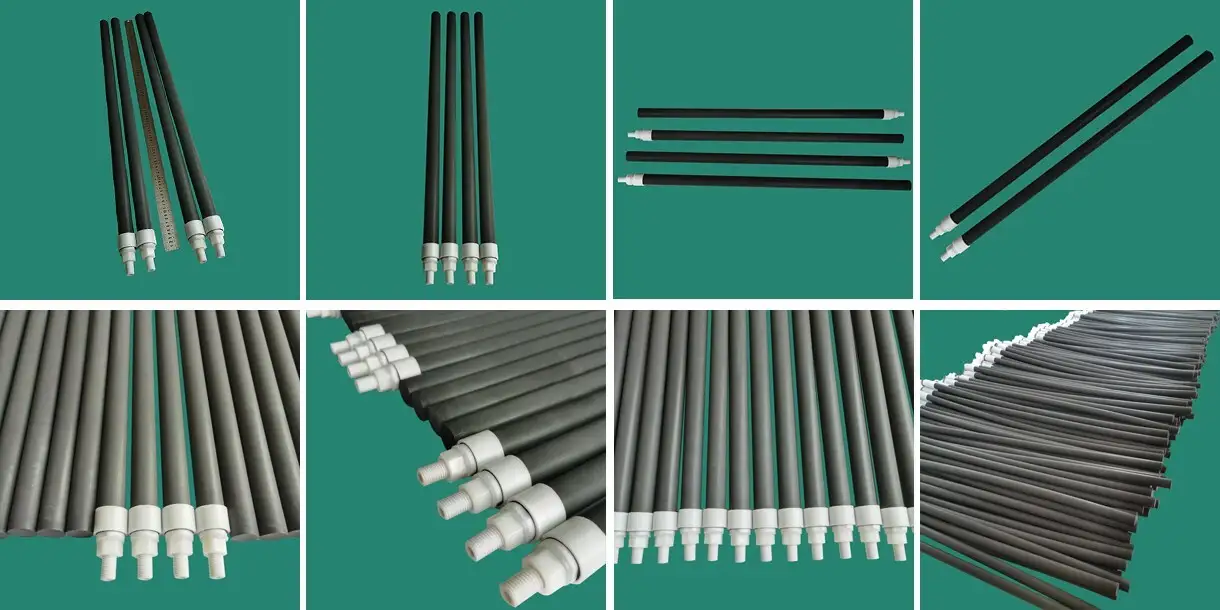

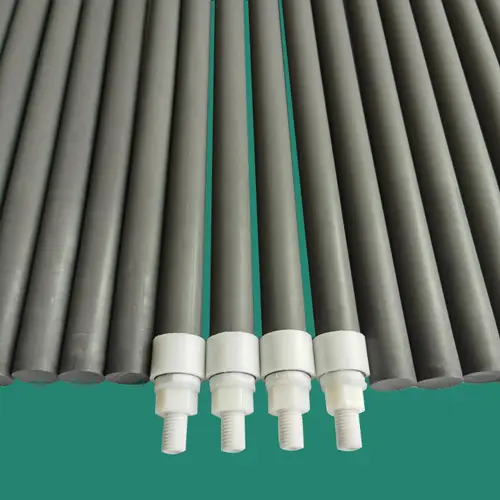

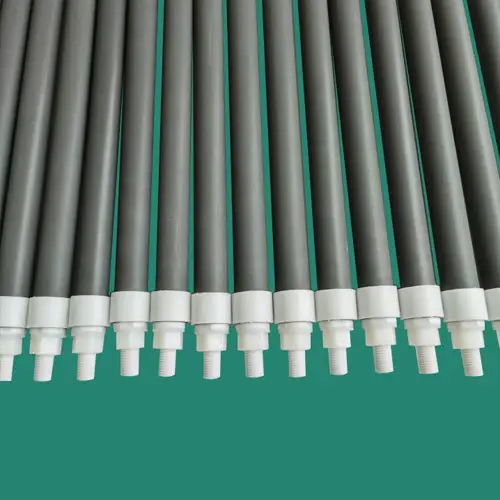

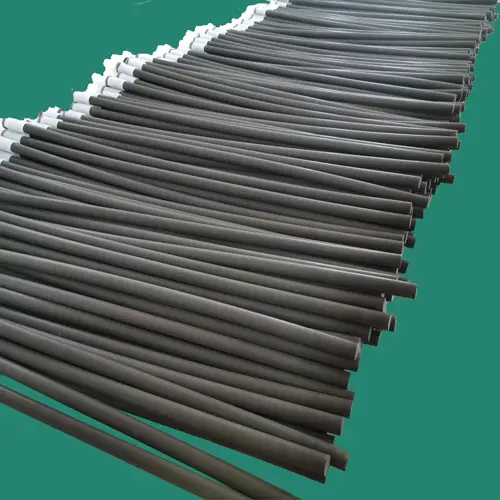

Factory Price Porous Plastic Sintered PA Membrane Filter with screw connector

Factory Price Porous Plastic Sintered PA  Membrane Filter with screw connector

Product Description

The PA sintered filter element is made of high-quality high-molecular polyethylene as the main raw material and carbon fiber through scientific formula sintering. Compact structure, strong, light weight, can withstand high filtration pressure, non-toxic and tasteless, and has good corrosion resistance to acid and alkali solvents.

1. Product features of PA microporous sintered filter element:

1. Resistant to the corrosion of strong acid and strong alkali, and resistant to the dissolution of organic solvents;

2. Excellent strength and wear resistance ensure its service life;

3. The surface of the outer light makes it difficult for impurities to stick;

4. Backflushing and backflushing are easy to reuse;

5. Good toughness, the filter element is not easy to break;

6. No threshing phenomenon, strong pressure resistance.

Specifications

Diameter: ∮20∮25∮30∮35∮38∮45∮50∮60

Connector size: M20-M22-M24-M26-M30

Joint material: polypropylene, 316 stainless steel

Length: 5″10″20″30″40″60″80″

Filtration accuracy: 0.5um-100um

Operating conditions

0-40℃ maximum operating pressure difference 6bar

60 ℃ maximum operating pressure difference 5bar

80℃ maximum operating pressure difference 4.5bar

120℃ maximum operating pressure difference 4bar

PA filter stick regeneration method:

• Physical method: Since the filter rod has good mechanical properties and will not break, 0.6Mpa compressed air can be used for back blowing and slag removal. Back blowing also plays a role in regeneration of capillary pores, but it accumulates in the filter layer after long-term use The fine particles will affect the filtration rate, and chemical regeneration must be carried out at this time.



• Chemical method: Soak the clogged PA filter rod in acid solution or alkali solution with a concentration of 5%-10% to neutralize the micromaterials clogged in the filter layer, and then recoil with water or air to clean it , The filtering effect of the filter rod can be restored.
