Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Start Port: | Guangzhou |
|---|---|
| Production Capacity: | 500 units/Month |
| Place of Origin: | Guangdong, China |
| Payment: | T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal |
| MOQ: | 10pcs |
| Model: | LY-PL-PTFE |
| Delivery Time: | Within 7 working days |
| Certification: | SGS, ISO 9001 |
| Brand: | LVYUAN |
Product Feature

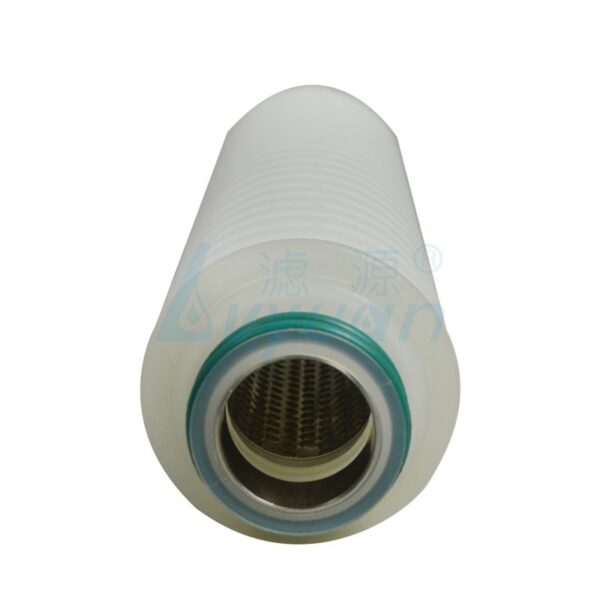

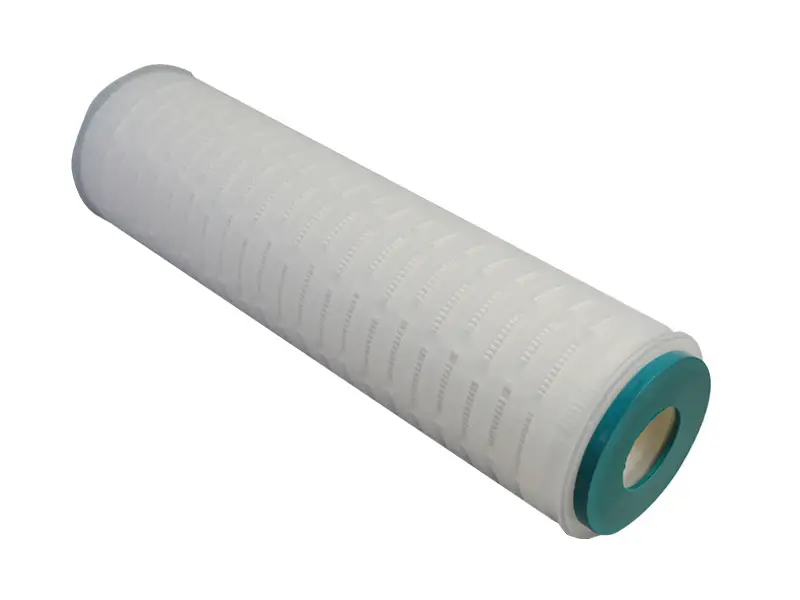

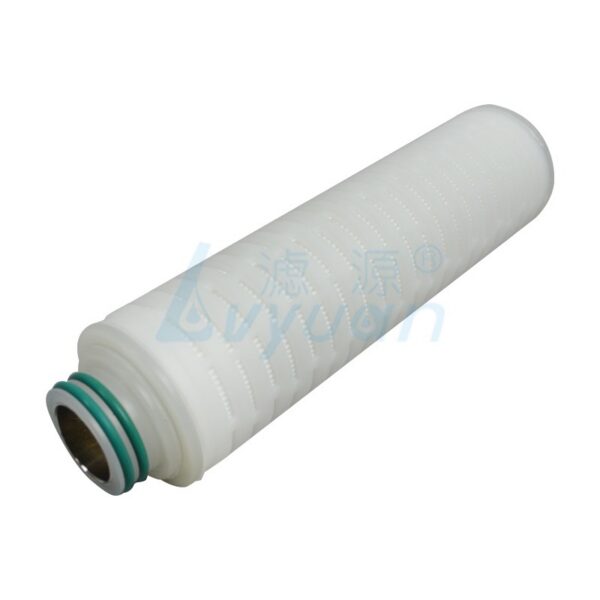

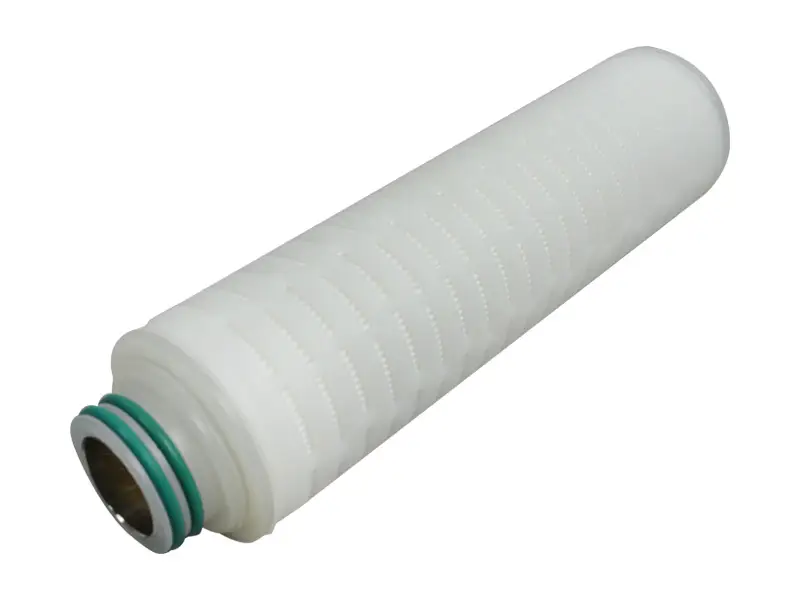

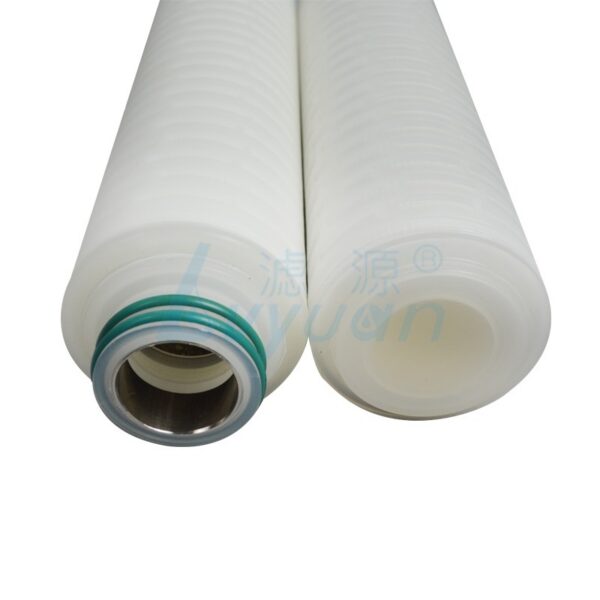

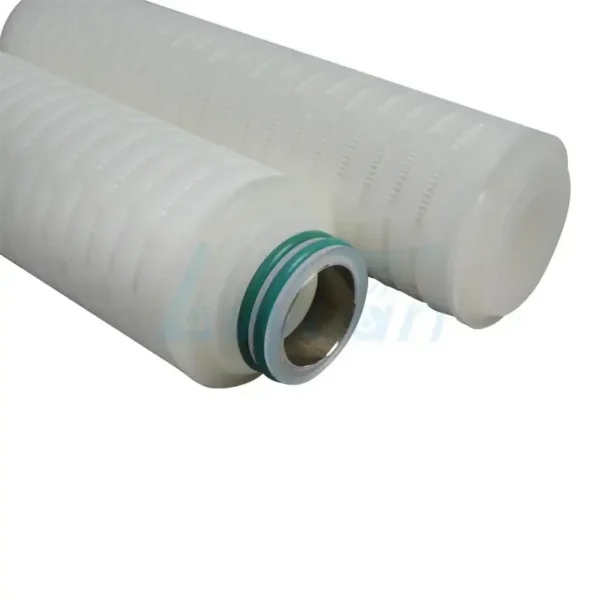

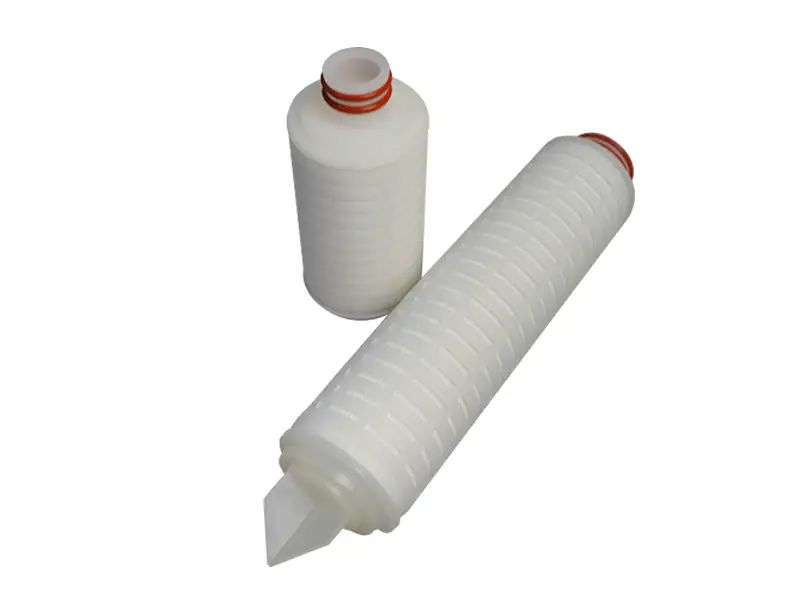

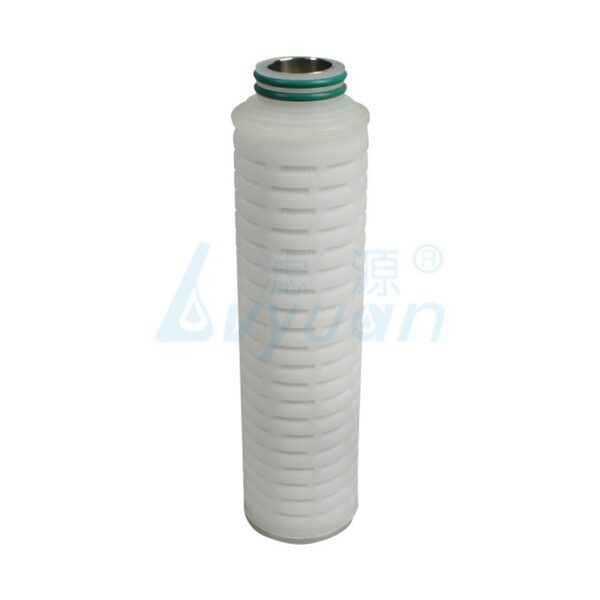

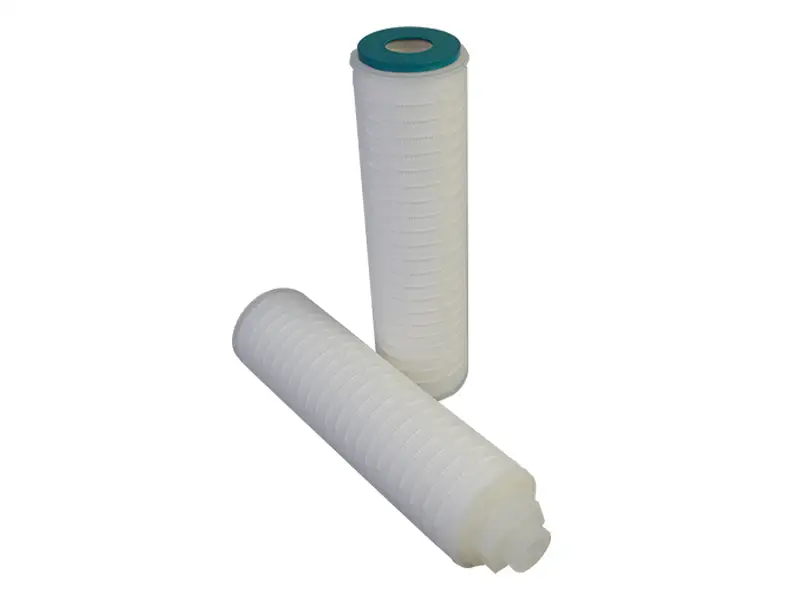

| Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
| Filter media | PTFE membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7‘’(69mm) |
| Length | 9.75”, 10”, 20”, 30”, 40”, Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.72m² |
| Max.operating temperature | 80℃, 0.173Mpa |
| Micron rating(μm) | 0.2, 0.45 |
Reverse osmosis water system prefiltration
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
