Slim size 2.5'' OD, and Jumbo cartridge 4.5'' OD.
Filtro Lvyuan-Cartucho de filtro de agua industrial & Fabricante de viviendas desde 2009.
Elemento filtrante de vapor de aire comprimido de acero inoxidable con cartucho de 0,2 micrones para filtros metálicos sinterizados SS316L
5.0
Puerto de inicio:
Guangzhou/Shenzhen
Capacidad de producción:
10000pc/month
Lugar de origen:
Guangzhou
Pago:
T/T, Western Union, Alibaba Trade Assurance, paypal
MOQ:
1 PC
Tiempo de entrega:
15-25 days
Certificación:
SGS, ISO 9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Complete el siguiente formulario para solicitar una cotización o solicitar más información sobre nosotros. Por favor, sea lo más detallado posible en su mensaje, y le responderemos lo antes posible con una respuesta. Estamos listos para comenzar a trabajar en su nuevo proyecto, contáctenos ahora para comenzar.

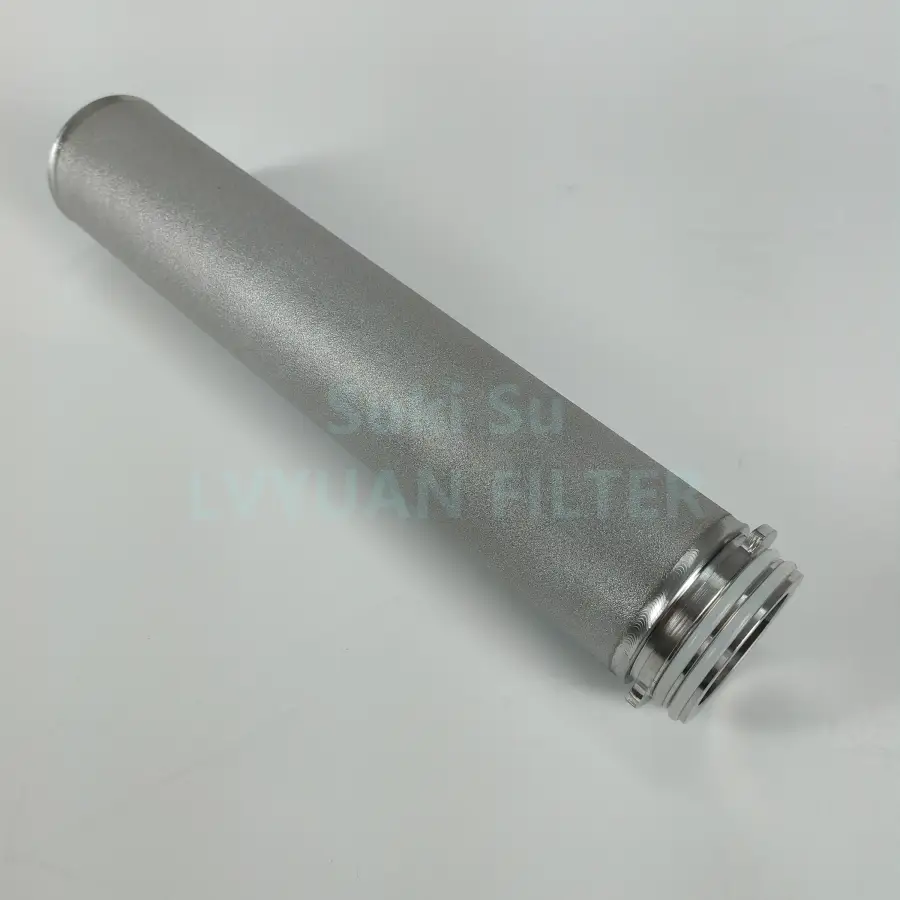

0.2 micron cartridge Stainless steel Compressed air Steam Filter Element for sintered SS316L metal filters
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
Fiter Cartridge dimensions
| ||
Length
|
5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
| |
Diameter
| ø25, 30, 50, 60, 65, 70mm
| |
Other dimensions
|
Customized by customer's request.
| |
Material of constructions
| ||
Filter media
|
SUS304, 316, 316L stainless steel
| |
Connector type
|
Flat, Insert type, Thread type, Fin
| |
End caps
|
DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
| |
Outside protection net
|
Optional
| |
Sealing material
|
Silicone, NBR, EPDM, Buna, Teflon, etc
| |
Rendemento
| ||
Removal rate
|
1, 3, 5, 10,20, 30, 40, 50, 100um, etc
| |
Effective Surface area
|
0.65sqm per 10" cartridge element
| |
Operation Temperature
|
≦480℃
| |
Cleaning method
|
back flushing, ultrasonic or other non-abrasive cleaning
| |
Maximum Operating Pressure differential
|
4.0bar
| |
Características:
1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.
Aplicación
Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical
Products Show
stainless steel wire mesh filter cartridge
Various mesh or filtration micron rate available for option.
Our Company
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Certifications
