Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Attribute | Details |
|---|---|
| Production Capacity | 10000 units/Month |
| Payment | T/T, Alibaba Trade Assurance |
| MOQ | 1 pcs |
| Model | LY-FB |
| Delivery Time | Within 7 working days |
| Certification | ISO 9001 |
| Brand | OEM/Lvyuan |
| Attribute | Details |
|---|---|
| Supply Ability | 1000000pc/month |
| Availability | OEM/ODM |

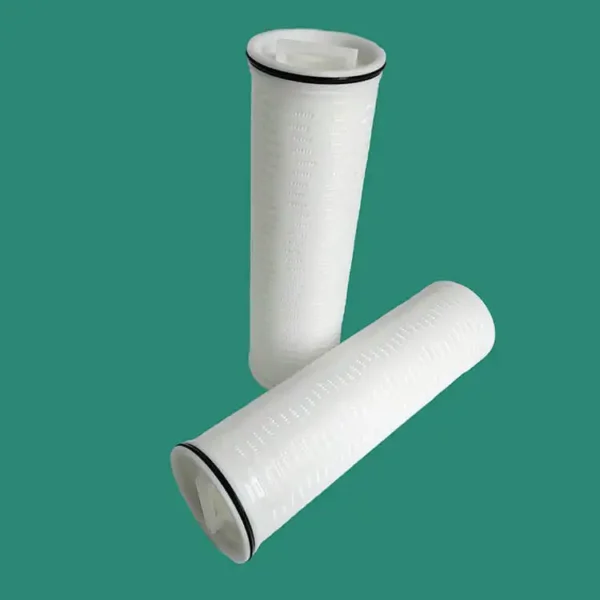

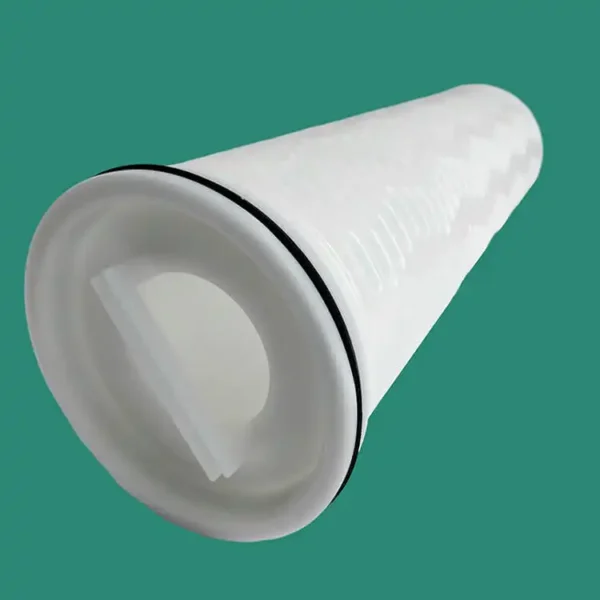

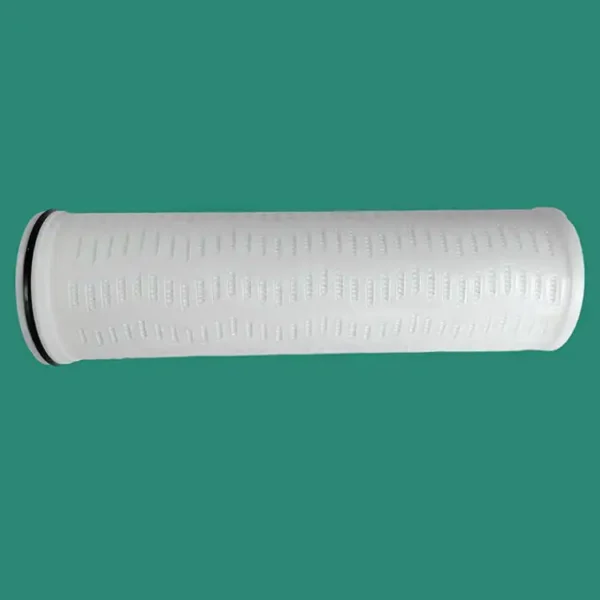

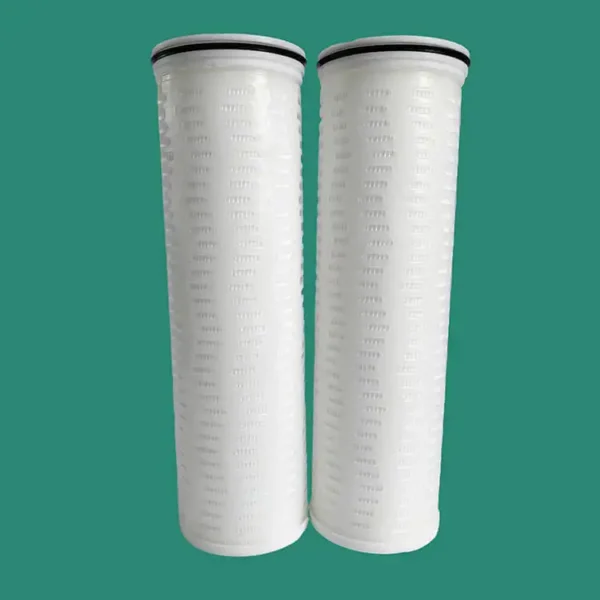

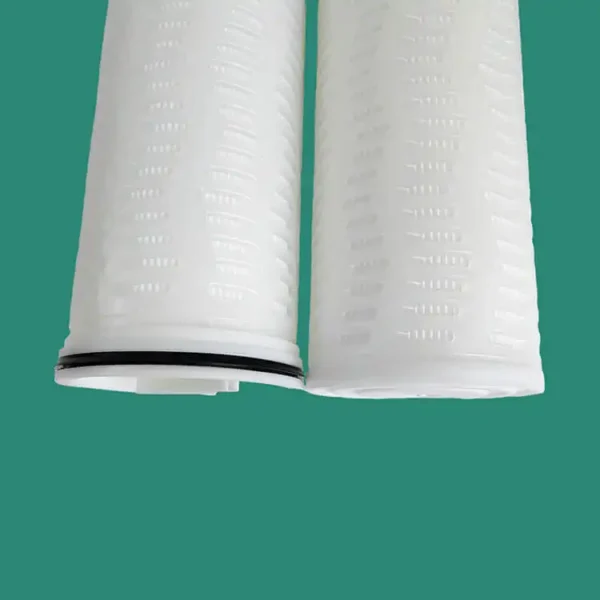

Lvyuan customized Micron High Flow Filter Cartridge
The High Flow series filter cartridges are designed for high flow rate filtration in demanding industrial applications. With optimized pleat geometry and robust construction, these filters provide up to 3 times the flow capacity of standard cartridges for maximum throughput.
Constructed with multiple layers of finely pleated polypropylene media, the high flow cartridges feature increased surface area and depth loading capacity to handle heavy contaminant loads. The proprietary media formulation allows high flow with low pressure drop.
The polypropylene center core provides strength and stability while the integrated gaskets effectively seal the cartridge within the housing. The one-piece polypropylene end caps eliminate potential leak points.
With high dirt holding capacity and efficiency up to 99.9% at rated micron, High Flow filter cartridges maintain process flow rates longer between change outs. Their wide chemical compatibility allows use across many applications.
High Flow cartridges are available with various micron ratings from 1 to 800 microns. Their large 2.5 inch diameter footprint combined with high flow design make these an ideal solution for high velocity fluids and large volume process streams.
Flow rates ranging from 250 to 1250 GPM provide flexibility in handling from tough industrial applications to high throughput manufacturing operations. High Flow cartridges deliver extreme flow filtration in a heavy duty yet economical package.
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
