PVDF Chemical-Resistant Bag Filter Housing for Industry

PVDF single-bag filter housing for particulate removal from compatible process liquids. Supports Size #1 and #2 bags, PVDF basket, multiple port styles and seals for industrial equipment integration and sourcing projects.

Consulta
Comparte tu aprecio
Categoría: Etiquetas: , ,

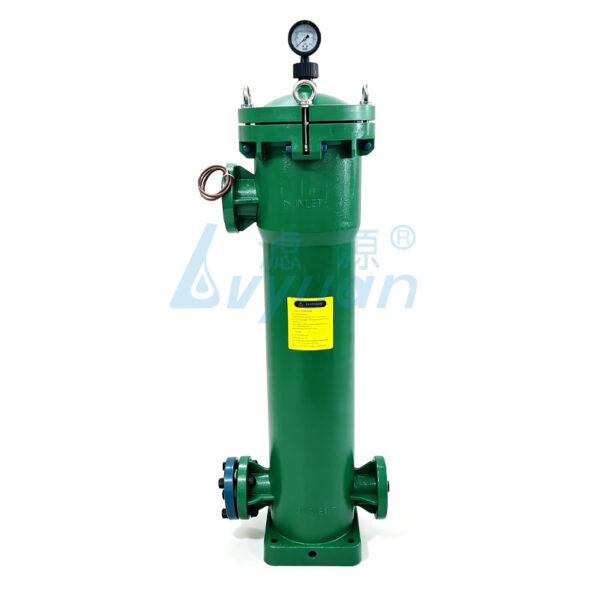

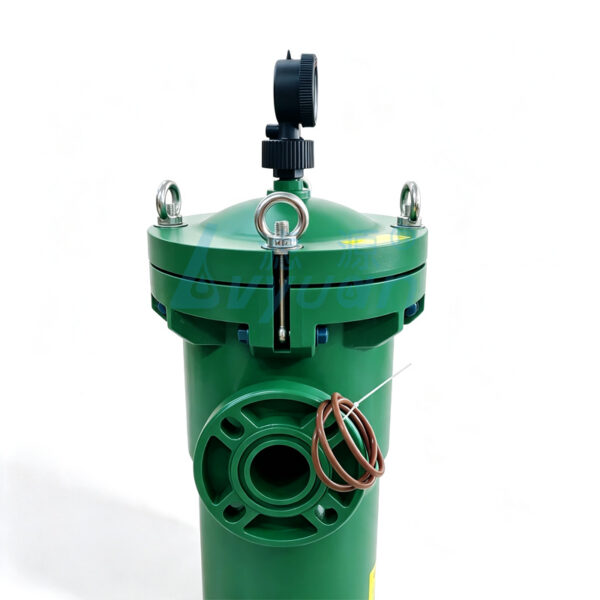

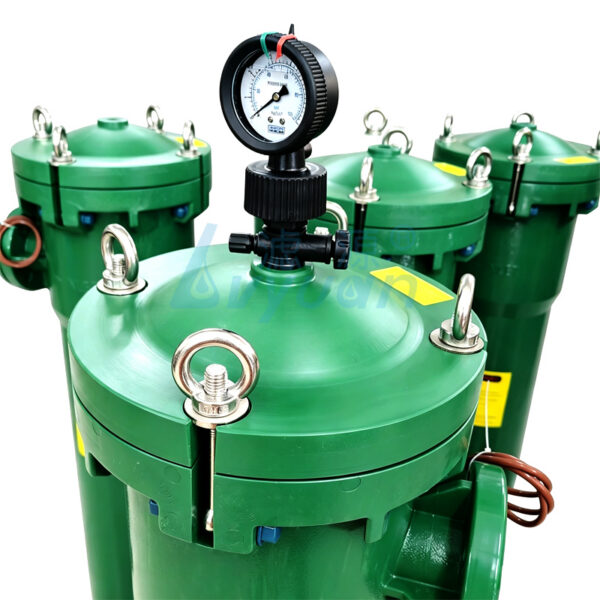

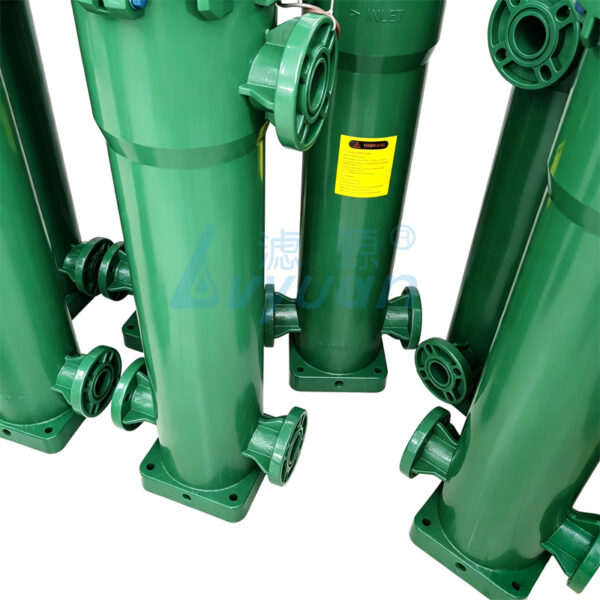

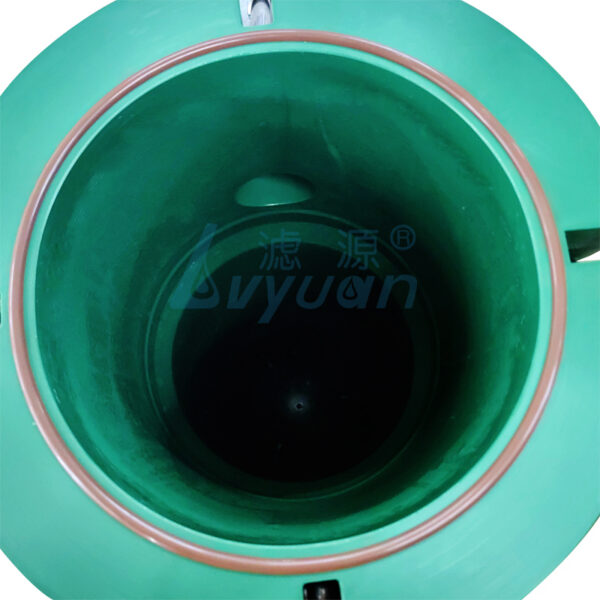

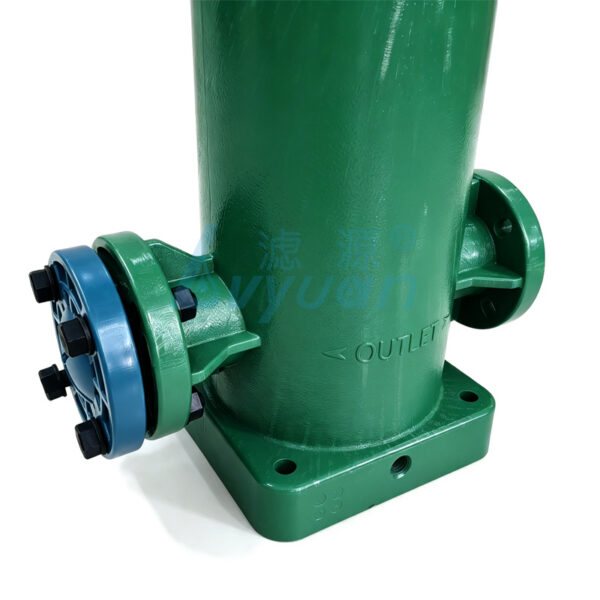

This industrial PVDF bag filter housing uses a polyvinylidene fluoride body with an internal PVDF retainer basket for Size #1 or #2 filter bags. It supports NPT, BSP and flange connections, with a 2″ standard connection size and customized sizes available for different piping arrangements.

The single-bag housing is rated for a maximum flow of 100 GPM, operating pressure up to 100 psi (6.9 bar), and temperature up to 212°F (100°C). Viton (FKM), EPDM and PTFE gasket options are available. Its polymer construction and configurable connections make it suitable for industrial filtration solutions, process equipment integration and volume procurement.

PVDF Chemical Resistant Bag Filter Housing 2PVDF Chemical Resistant Bag Filter Housing 8

Tipo

PVDF Industrial Single-Bag Filter Housing
Material

PVDF (Polyvinylidene Fluoride)
Configuración

Size #1 / #2 Filter Bag with PVDF Retainer Basket
Conexión

NPT, BSP, Flange
Connection Size

2" Standard; Customized Sizes Available
Presión de funcionamiento

Max. 100 psi (6.9 bar)
Temperatura de funcionamiento

Max. 212°F (100°C)
Caudal

Max. 100 GPM for Single-Bag Model
