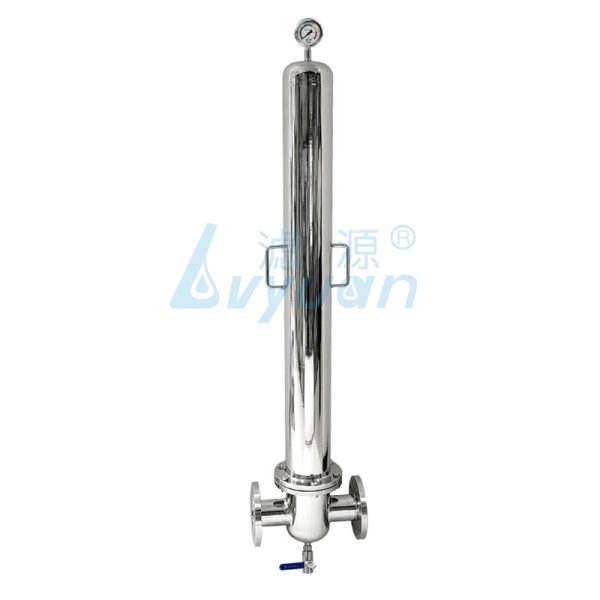

Single Cartridge T-Type Stainless Steel Gas Filter Housing (8)

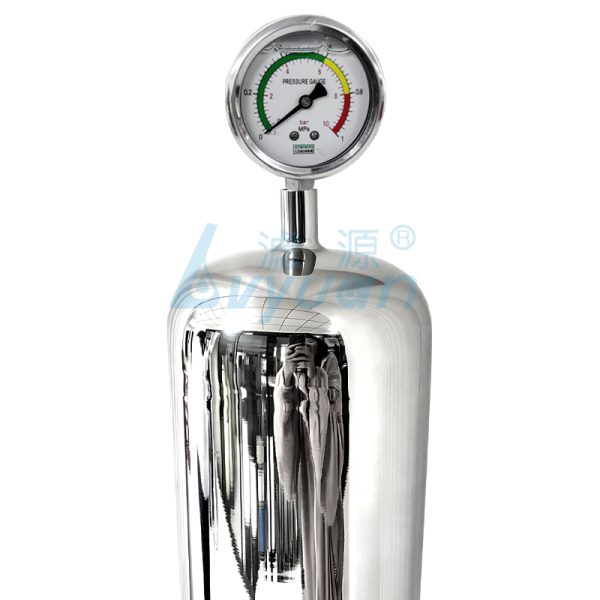

Single Cartridge T-Type Stainless Steel Gas Filter Housing (5)

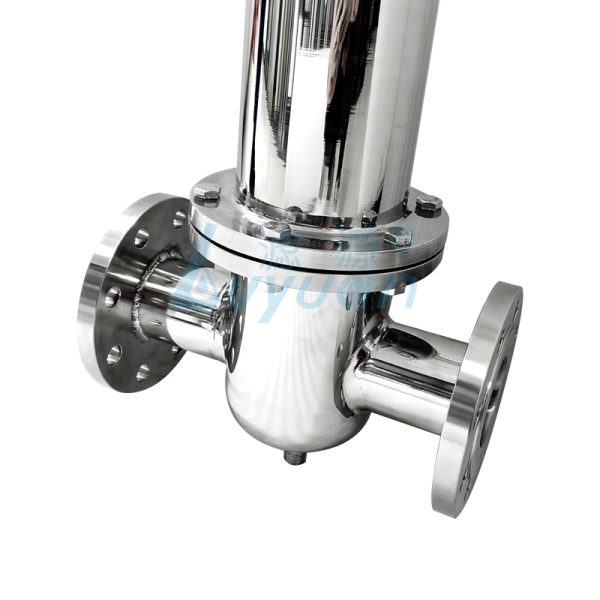

Single Cartridge T-Type Stainless Steel Gas Filter Housing (4)

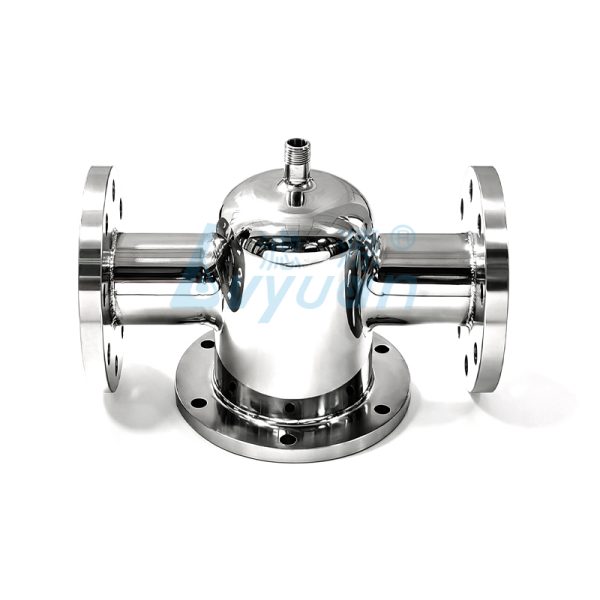

Single Cartridge T-Type Stainless Steel Gas Filter Housing (7)

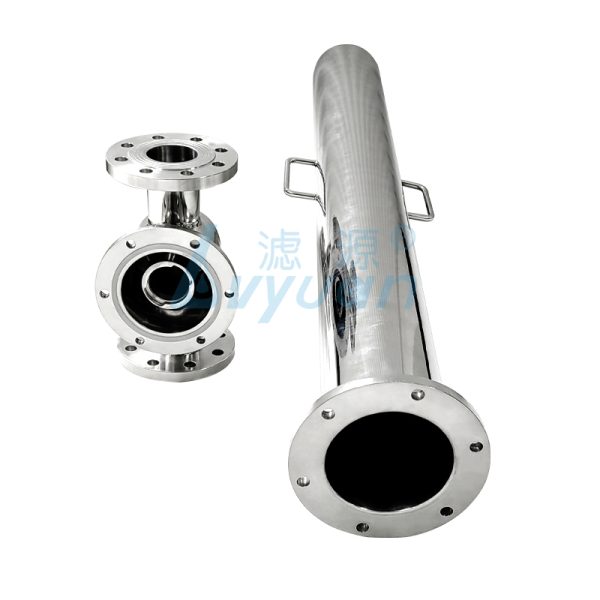

Single Cartridge T-Type Stainless Steel Gas Filter Housing (6)

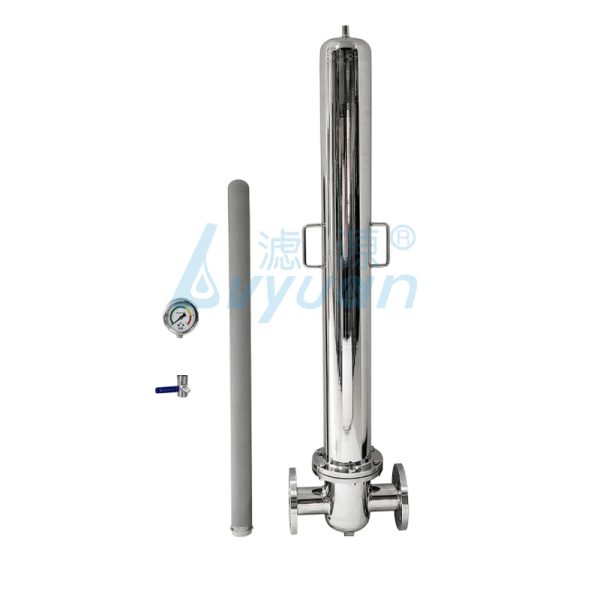

Single Cartridge T-Type Stainless Steel Gas Filter Housing (3)
  1. Single Cartridge T-Type Stainless Steel Gas Filter Housing (8)
  2. Single Cartridge T-Type Stainless Steel Gas Filter Housing (5)
  3. Single Cartridge T-Type Stainless Steel Gas Filter Housing (4)
  4. Single Cartridge T-Type Stainless Steel Gas Filter Housing (7)
  5. Single Cartridge T-Type Stainless Steel Gas Filter Housing (6)
  6. Single Cartridge T-Type Stainless Steel Gas Filter Housing (3)

Single Cartridge T-Type Stainless Steel Gas Filter Housing

Single cartridge T-type SS304/SS316L gas filter housing for compressed air, nitrogen and process gases. Supports 10″-40″ cartridges, multiple media, seals, DN25-DN80 flanges, finishes and accessories.

Consulta
Comparte tu aprecio
Categoría: Etiquetas: , ,

The Single Cartridge T-Type Stainless Steel Gas Filter Housing is designed for particulate and fine filtration of compressed air, nitrogen and other compatible process gases. Its SS304 or SS316L construction accommodates one 10″, 20″ or 30″ cartridge with PTFE, PP, PES or stainless steel media and 222, 226 or DOE connections.

For different industrial filtration solutions, the housing can be configured by stainless steel grade, cartridge length, filtration media, seal material, flange size, surface finish and accessories. Typical uses include compressed-air treatment, nitrogen filtration, process-gas pre-filtration and downstream equipment protection in chemical processing, food and beverage, pharmaceutical and general industrial systems, subject to process compatibility.

Single Cartridge T-Type Stainless Steel Gas Filter Housing (1)Single Cartridge T-Type Stainless Steel Gas Filter Housing (2)

Tipo

Single Cartridge T-Type Gas Filter Housing
Material

SS304, SS316L
Longitud del cartucho

10", 20" , 30"or 40"
Índice de filtración

0.2, 0.45, 1, 3, 5 μm
Medio filtrante

PTFE, PP, PES, Stainless Steel
Conexión del cartucho

222, 226, DOE
Operating Conditions

Max. 10 bar, Max. 150°C
Inlet/Outlet

DN25, DN40, DN50, DN65, DN80
Surface Treatment

Mechanical Polishing, Mirror Polishing, Electropolishing
