PES vs PTFE cartridges: 8 key metrics—chemistry, temp, strength, fouling and cost—plus lab data and industry cases to guide equipment selection.

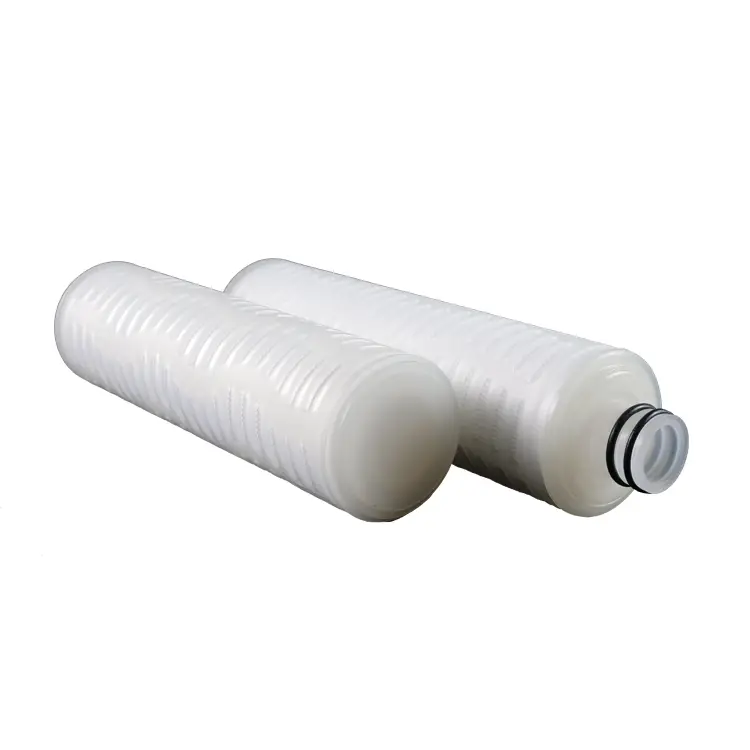

In the field of industrial filtration technology, the performance difference between polyethersulfone (PES) and polytetrafluoroethylene (PTFE) filter cartridges directly determines the division of their application scenarios. In this article, we compare the chemical stability, mechanical strength, temperature limit and other eight core indicators of the two materials, combined with laboratory data and industrial cases, to reveal their technical boundaries and industrial adaptation logic. At the end of the article with authoritative external links and comparison table, for equipment selection to provide a scientific basis.
The molecular chain of PES consists of ether bonds and sulfone groups, giving it excellent oxidation resistance and mechanical strength (tensile strength of 70-85 MPa), but there are UV-sensitive defects. On the other hand, PTFE’s perfluorocarbon chain structure forms a highly symmetrical crystal arrangement with a low surface energy of 18.5 mN/m, which realizes natural hydrophobicity and chemical inertness. This structural difference leads to very different performance in extreme environments.
Laboratory data show that PES at 140 ° C can still maintain 90% of the initial strength, but more than 180 ° C when the thermal deformation is significant; PTFE in the high temperature of 260 ° C is still maintained in a stable form, -200 ° C low temperature toughness decreased by only 12%. A chemical enterprise reactor tail gas filtration project proved that PTFE cartridge in 230 ° C working conditions is 3.2 times the service life of PES.
PTFE can withstand 98% concentrated sulfuric acid, 40% hydrofluoric acid and other strong corrosive media, while PES in the alkaline solution of pH>12 will be dissolved. The etching solution filtration system of a semiconductor plant in Shanghai shows that PTFE filter cartridge has a tolerance cycle of 6000 hours for mixed acid (HNO3:HF=3:1), far exceeding the 1500 hour limit of PES.
PES’s modulus of elasticity (2.6 GPa) makes it suitable for high-pressure pulse backwash scenarios, while PTFE’s low coefficient of friction (0.04-0.15) excels in dynamically sealed filtration units. Tests at a water treatment plant in Germany showed that the breakage rate of PES filter cartridges under 0.8 MPa pressure was 47% lower than that of PTFE, but PTFE’s abrasion resistance extended its life by 58% in fluids containing hard particles.
PTFE’s hydrophobic surface makes the oil-water mixture contact angle of 115 °, compared with PES’s 75 °, its anti-pollution ability to improve three times. The U.S. Environmental Protection Agency (EPA) air purification project data show that PTFE cartridge in the PM2.5 capture efficiency of 99.97%, and pressure drop growth rate of 62% slower than PES.
| Parameters | PES cartridge | PTFE cartridge | Data source |
| Single purchase cost (USD) | 120-180 | 350-500 | |
| Average Annual Replacements | 4 | 1.5 | |
| Five-Year Total Cost (USD) | 2400-3600 | Industrial Test Reports | 2625-3750 |
Despite the high initial cost of PTFE, its overall cost advantage over long life cycles is significant.
PES is certified as USP Class VI biocompatible and dominates the pharmaceutical field for blood product filtration. PTFE requires additional surface treatment in EU GMP Annex 1 cleanroom standards due to trace amounts of processing aids, and the FDA database shows that PES will have 63% more applications than PTFE in the medical field in 2024.
The emission of perfluorinated compounds (PFCs) during PTFE production reaches 0.8 kg/ton, facing the EU REACH regulation restrictions; while the carbon footprint of PES (3.2 tCO2e/ton) is 42% lower than that of PTFE. The PES-PTFE composite cartridge developed by Toray in Japan has increased the recycling rate to 85%, creating a new model of circular economy.
The technological game between PES and PTFE filter cartridge is the material science in engineering practice, and PTFE is good at extreme environmental adaptability, while PES is superior in cost-effectiveness and biosafety. Industry decision makers need to establish a multi-dimensional evaluation model, taking into account the ISO 29463-2024 air filtration standard and the specific needs of working conditions. With the breakthrough of nano-modification technology (e.g. graphene reinforced PTFE), the future filter element will evolve towards intelligence and functional integration.
