What to Inspect After a Filter Cartridge Collapse Event
A filter cartridge collapse means the purification system has actually crossed a mechanical limitation, yet the smashed aspect alone will certainly not tell you whether the initiating fault was excessive differential stress, opposite circulation, cold-start thickness, obstructed discharge, bypass failure, inadequate installation, chemical strike, or an underrated substitute cartridge.
What stopped working first?
That question matters because mounting an additional aspect without discovering the initiating problem can generate a 2nd collapse within mins. Worse, the first failure may currently have actually released preserved solids, broken polymer, glue, fibers, gasket pieces, or metal assistance product into tools downstream.
My position is candid: a collapsed cartridge is not a routine changeout. It is a system occurrence calling for proof preservation, inspection, contamination evaluation, and a recorded return-to-service decision.
Treat Filter Cartridge Collapse as a System Failure
A cartridge breaks down when the pressure distinction across its media and assistance framework surpasses what the element can endure, or when a structurally weakened component stops working below its initial ranking. ISO 2941:2009 addresses this precise property by testing whether a hydraulic filter element endures a marked differential stress in its intended flow direction.
The visible contortion may be remarkable, yet it is only the final link in the chain.
Normal starting problems consist of:
Modern pollutant loading
An abrupt solids slug
Cold, high-viscosity liquid during start-up
Extreme pump circulation
A shut or limited downstream shutoff
Reverse flow through an in need of support component
Failure of the bypass or differential-pressure indication
An incorrect micron ranking, length, end link, or collapse-pressure spec
Media degradation caused by temperature level or chemical incompatibility
Missing, distorted, or insufficient interior assistance
The hard truth is that upkeep groups usually condemn “a negative filter” since the element is already ruined and the pressure background is inconveniently insufficient. That conclusion is readily comfy. It is not failing evaluation.
Isolate the System and Protect the Evidence
Do not draw the cartridge out, toss it into a waste container, and clean the real estate prior to someone photographs the installment.
Record the devices tag, cartridge component number, set number, installment date, solution hours, procedure fluid, running temperature, nominal circulation, startup conditions, last known tidy differential pressure, final differential pressure, alarm background, bypass condition, and the specific series of operator actions.
Then protect:
The flattened element in its removed positioning
Loose debris from the real estate
Upstream and downstream fluid samples
Differential-pressure fad data
Pump rate and circulation documents
Valve-position history
Alarm and interlock logs
The previous cartridge, when available
Packaging and certificates for the unsuccessful replacement component
Tiny information settle large debates. A compression mark at the top seal, for example, may reveal that the cartridge was too long, while a clean longitudinal split can aim towards hoop anxiety or in need of support differential pressure instead of straightforward pollutant loading.
Inspect the Collapsed Filter Cartridge Prior To Sufficing Open up
Start with the whole component. Photo all sides versus a dimension range and mark the circulation direction prior to harmful examination.
Inspect the direction and shape of contortion
An internal collapse normally shows stress acting from the cartridge outside towards the core without adequate internal assistance. Outward ballooning recommends reverse differential pressure, caught interior pressure, backflushing outside the element’s layout basis, or circulation set up in the incorrect instructions.
Search for:
Attire radial crushing
Localized twisting
Telescoped pleats
Flattened flow channels
Core ovality
Longitudinal splitting
Circumferential fracturing
End-cap splitting up
Media pulled away from completion cap
Bond-line failing
Perforated-core tearing
Missing items
The failure pattern must concur with the recorded circulation instructions. When it does not, presume the operating background or installation orientation is wrong till proven or else.
Examine the media and support framework
Pleated aspects rely on water drainage layers, support mesh, pleat spacing, bond stability, and core stiffness. Study right into hydraulic filter-element style has shown that adjustments in pleat support geometry can reduce pressure drop by about 30%, which illustrates how strongly inner geometry affects mechanical loading.
Check for pleat bunching, media compression, reduced pleats, split sintered material, fiber losing, delamination, embrittlement, softening, discoloration, swelling, and chemical odor.
For stiff porous elements, compare the failed style with suitably specified alternatives such as a 30-micron UHMWPE sintered plastic filter o un 60-inch 100-micron HDPE/PE sintered filter component. This is not an automated recommendation to substitute materials; it is a pointer that pore dimension, geometry, temperature, solvent exposure, and structural resistance must be evaluated together.
Take a look at end caps, joints, and seals
A cartridge can show up fallen down when the initiating fault was really inadequate axial seats.
Inspect both end caps for:
Cracks around the core
Sticky splitting up
Unequal potting deepness
Thermal distortion
String damage
Fin damage
Flattened adapters
Off-center compression marks
O-ring cuts
Seal extrusion
Inaccurate gasket product
Evidence of double gasketing
Port inequality should have even more attention than it generally gets. DOE, SOE, 222, 226, threaded, flat, insert, and fin-ended components are not compatible simply because their total sizes look similar. Item households such as SOE and DOE polyethylene filter components illustrate the amount of micron rankings, sizes, adapter patterns, and material combinations can exist within one wide cartridge category.

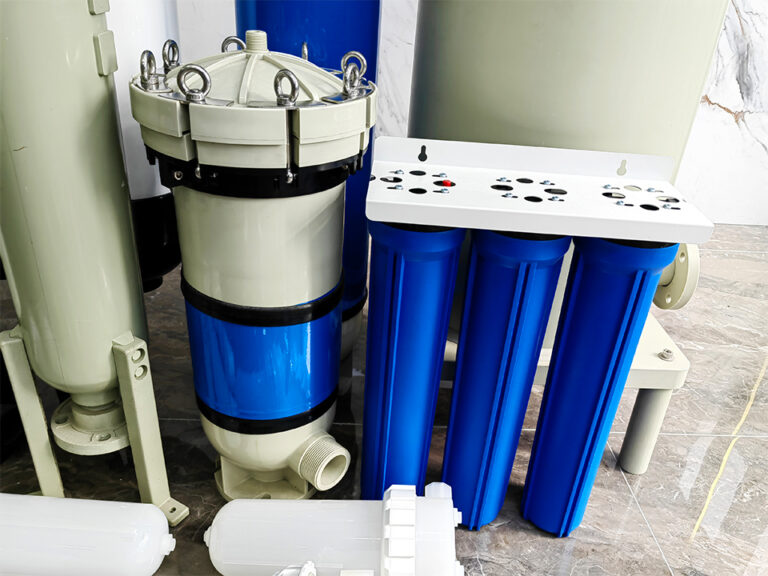

Execute a Thorough Filter Real Estate Examination
The housing may look undamaged while its inner geometry has actually transformed sufficient to harm the next cartridge.

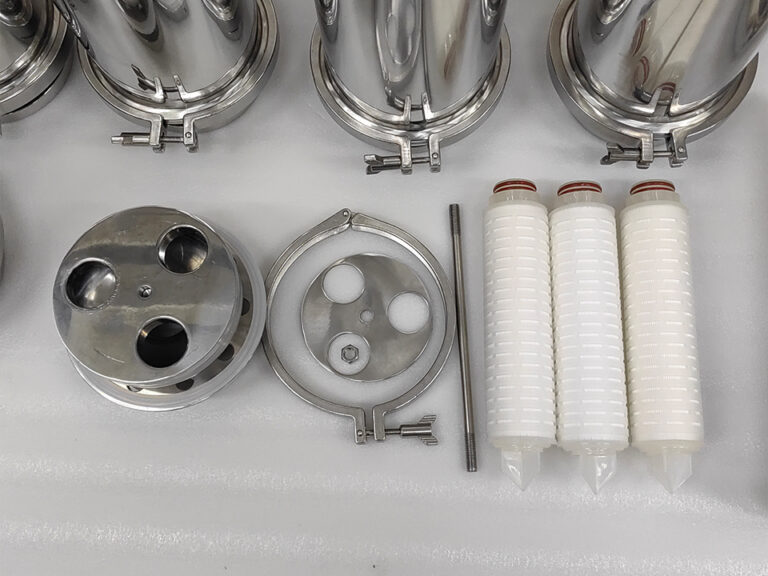

Inspect the dish, cover, tubesheet, cartridge seat, connection rod, hold-down spring, main message, situating mugs, support cage, air vent, drain, inlet, outlet, and every internal weld. Use strong lighting and a borescope where gain access to is restricted.
Busca:
Scoring caused by cartridge pieces
Damages or internal deformation
Fractured welds
Fretting around situating hardware
Bent connection rods
Harmed strings
Distorted securing faces
Corrosion or matching
Loosened range
Worn down inlet areas
Plugged drainpipe or vent flows
Evidence that the cartridge called the housing wall surface
Debris caught under the lower seat
Measure measurements. Do not count on eyesight.
Validate cartridge length, bowl deepness, seal compression, article concentricity, springtime traveling, tubesheet monotony, and clearance around the component. A cartridge forced into a small stack-up can be preloaded before the pump also begins.
Product compatibility likewise belongs in the housing assessment. In a 2023 event reported by the UK Alcohol Consumption Water Inspectorate, roughly 240 filter-housing devices were evaluated after elevated lead levels were associated with filter adjustments; the examination mapped the risk to brass-alloy fittings, and flushing decreased the observed degrees. The lesson is broader than drinking water: opening a filtering system can expose product, flushing, and contamination problems that were undetectable throughout normal operation.
Rebuild the Differential-Pressure Occasion
Differential pressure is not a single number. It is a timeline.
Recover the clean-element baseline and contrast it with analyses throughout steady procedure, shutdown, start-up, flow modifications, temperature modifications, alarm activation, and the thought collapse time.
Story, at minimum:
Inlet stress
Electrical outlet pressure
Presión diferencial
Caudal
Fluid temperature level
Pump speed
Liquid thickness, determined or determined
Bypass-valve setting
Differential-pressure switch status
A stress spike lasting 2 secs can damage an aspect also when hourly historian information looks normal. So inspect the information resolution. A 15-minute standard is close to useless for a transient failing investigation.
Confirm the differential-pressure gauge or transmitter against a calibrated referral. Evaluate impulse lines for connecting, leakage, entraped gas, frozen liquid, reversed links, and closed isolation valves. Examine the alarm system and trip setpoints rather than relying on the display screen.
And ask the awkward inquiry: was the sign showing filter limitation, or was it showing its own failure?
Check the Bypass Valve, Alleviation Instruments, and Circulation Course
A bypass shutoff should shield flow connection or the aspect, depending upon the system design. It needs to not be treated as proof that the cartridge can not break down.
Get rid of and examine the bypass assembly where useful. Examine the spring, poppet, overview, seat, seals, down payments, deterioration, opening up stress, reseating behavior, and freedom of movement. A shutoff may pass a fixed bench examination yet stick under polluted process conditions.
Trace the whole flow course.
Validate that downstream isolation shutoffs were open, inspect valves relocated easily, control shutoffs did not fail shut, tubes were not inside flaked, filters were not obstructed, and discharge piping was not frozen or plugged.
A 2024 FDA adverse-event document including a Hamilton-T1 ventilator highlights the bigger engineering concept. Added filtration resistance, combined with need going beyond the examined arrangement, was identified as a likely factor to unrestrained pressure actions and tools closure. It was not a cartridge-collapse case, however it demonstrates why detectives have to evaluate the total resistance-and-flow setup as opposed to analyzing one filter in isolation.
Conduct a Filter System Contamination Inspect
Presume kept contamination got away till sampling shows or else.
Accumulate depictive samples upstream and downstream using tidy containers and a recorded technique. Depending upon the process, examination for fragment matter, gravimetric solids, turbidity, ferrous thickness, water material, acid number, viscosity, conductivity, microbiological lots, fibers, polymer pieces, or product-specific contaminants.
ISO 16889:2022 assesses hydraulic filter efficiency through continual impurity injection and steps contaminant ability, fragment elimination, and differential-pressure characteristics. That structure reinforces a crucial point: loading, separation efficiency, and pressure habits are connected, not independent specs.
Check downstream elements with little clearances first:
Servo valves
Symmetrical valves
Pump control flows
Bearings
Spray nozzles
Orifices
Warmth exchangers
Membranes
Instrument impulse lines
Final-use equipment
A broke down cartridge can develop two contamination populaces simultaneously: the product the filter previously recorded and fragments of the filter itself.
That 2nd populace is regularly overlooked.
Verify Material, Temperature Level, and Chemical Compatibility
Do not accept “PE,” “PTFE,” “PP,” or “nylon” as a total compatibility statement.
Review the specific polymer grade, stabilizers, bonding material, gasket compound, assistance product, temperature, focus, exposure period, cleansing chemistry, vapor or sanitization cycle, pressure pulsation, and solvent mixture.
A permeable PE/PTFE round filter might be supplied in removal scores from 0.1 to 60 µm, with several connector and end-cap configurations, while the distributor determines an optimum operating pressure of 6.0 bar for that item family. Those specifications reveal why “exact same diameter” is insufficient to develop suitability.
Also, the vendor data for its sintered polymer array notes PE, HDPE, PTFE, PVDF, and PA/nylon choices, pore scores from 0.2 to 100 µm, and multiple DOE, SOE, 222, 226, threaded, and flat connections. Each modification influences fit, flow resistance, compatibility, and possibly collapse habits.
Contrast the failed cartridge’s certification and drawing with the purchase order. Substitution mistakes occur. So do undocumented supplier modifications.
Figure out Whether the Source Was Loading, Shock, Issue, or Misapplication
I make use of 4 root-cause containers since they compel the investigation beyond unclear expressions such as “high stress.”
Modern loading
Evidence includes heavy, fairly uniform contaminant build-up; steadily rising differential pressure; low downstream bit degrees prior to failure; and operation past the typical changeout factor.
Hydraulic or pneumatically-driven shock
Proof includes abrupt contortion, a short pressure transient, shutoff activity, pump acceleration, water hammer, fast gas pressurization, or collapse without proportional pollutant loading.
Manufacturing or setting up flaw
Proof consists of poor potting, insufficient bonding, eccentric construction, poor core overlap, damaged media from pleating, wrong products, missing supports, or failure listed below the confirmed score.
ISO 2942:2018 uses a bubble-point approach to examine fabrication honesty and identify the biggest pore area of hydraulic filter aspects. After a collapse, an equivalent stability examination might aid find media or joint flaws, although a seriously warped component might no more be suitable for standardized testing.
Application or setup error
Evidence consists of wrong circulation direction, wrong cartridge length, inappropriate seals, extreme temperature level, reverse flushing, inadequate assistance, adapter mismatch, circulation past design, or a cartridge chosen by micron score alone.
Micron ranking is not architectural rating. I would print that sentence on every filtering purchase requirements.
Make Use Of a Formal Post-Collapse Evaluation Matrix
Assessment factor
Evidence to collect
Most likely failure signal
Called for activity before restart
Cartridge contortion
Images, measurements, flow-direction marks
Inward crush, ballooning, localized fastening
Figure out differential-pressure instructions and peak
Medio filtrante
Down payments, tears, delamination, hardness modifications
Straining, chemical assault, producing flaw
Examine deposits and verify compatibility
Core and assistance layers
Ovality, cracks, mesh variation
Insufficient collapse toughness or reverse flow
Compare to rated support design
End caps and potting
Splits, pullout, unequal bond
Axial overload, warmth damages, bad manufacture
Decline questionable set and examine preserved samples
Do not reactivate because the housing is tidy and a brand-new cartridge is readily available.
The restart package ought to specify quantifiable acceptance requirements:
Real estate examination finished with no unsolved damages
Cause of collapse identified or bounded by making up controls
Differential-pressure instrumentation calibrated
Alarm system, trip, bypass, and alleviation features evaluated
Circulation direction physically confirmed
Cartridge component number and score inspected versus the accepted specification
Liquid temperature and viscosity within the start-up envelope
Upstream contamination source regulated
Downstream circuit purged where launch is feasible
Baseline samples accepted
Clean-element pressure decline documented
First startup conducted at minimized circulation where operationally feasible
Differential stress kept track of at high data resolution
Follow-up example and evaluation interval appointed
The UK Alcohol consumption Water Inspectorate documented a different February 2023 filtration-maintenance event at Otterbourne in which filter media went into a get in touch with container after wrong isolation; restoring service needed draining, cleansing, refilling, tasting, supply rezoning, and assistance from 30 vessels. That was not a cartridge collapse, but it is a strong caution versus reactivating filtration tools prior to the downstream system is verified clean and properly isolated. (Dwi Production Documents)
A replacement element is not a rehabilitative action. It is merely a substitute element.
Preguntas frecuentes
What should be examined initially after a filter cartridge collapse?
The first examination needs to establish the collapse direction, maintain the failed cartridge, paper operating conditions, and figure out whether contamination left downstream. Prior to cleansing anything, picture the installed aspect, record pressure and flow data, collect liquid examples, mark flow direction, and preserve loosened fragments for product and failure-pattern evaluation.
After proof conservation, check the component’s core, media, end caps, seals, and assistance layers. After that move outside to the real estate, pressure tools, bypass valve, piping, pump, and downstream tools.
What causes a filter cartridge to break down?
A filter cartridge breaks down when differential stress, reverse circulation, architectural deterioration, or setup loading goes beyond the mechanical resistance of its media, core, joints, or support group. Typical launching conditions include clogging, cold thick liquid, excessive flow, blocked discharge, stopped working bypass security, chemical attack, wrong circulation instructions, and an underrated substitute component.
The noticeable collapse pattern assists separate these causes. Consistent internal crushing suggests continual normal-direction differential stress, while outward expansion or displaced assistance material may aim towards reverse pressure or inaccurate backflushing.
Can I set up a new cartridge and reactivate quickly?
Immediate reboot is risky unless the housing, stress controls, circulation course, fluid tidiness, and downstream devices have been inspected and the starting mistake has been gotten rid of. A new cartridge can fall down once again, bypass contaminants, or hide unsettled real estate and shutoff damages if replacement takes place without a documented post-failure analysis.
At minimum, confirm instrumentation, bypass procedure, cartridge specification, circulation direction, temperature level, viscosity, contamination levels, and clean-element stress drop. Make use of a controlled start-up and screen differential pressure continually.
Just how do I recognize whether contamination passed downstream?
Downstream contamination is verified by representative liquid sampling, bit or solids evaluation, visual evaluation, and examination of susceptible equipment after the flattened cartridge is isolated. Private investigators need to look for both previously captured procedure pollutants and brand-new debris launched from media, support cores, adhesives, end caps, seals, or housing surface areas.
Contrast upstream and downstream samples with historic baselines. Where item safety or equipment dependability is at stake, flush the circuit and call for acceptable resampling prior to regular procedure resumes.
What is the best substitute for a collapsed filter cartridge?
The very best substitute is a component whose collapse score, differential-pressure qualities, material compatibility, micron efficiency, dimensions, assistance framework, and port design are confirmed for the actual procedure envelope. Selecting by small micron ranking or outside dimensions alone does not develop mechanical viability, sealing reliability, or chemical resistance.
For specialized setups, options might include a stiff sintered element, a supported pleated layout, or a personalized 222-fin microporous filter arrangement. Engineering approval should precede any type of material or design modification.
Build the Replacement Specification Around the Failing Evidence
A filter cartridge collapse is pricey information. Utilize it.
Send out the failed-element dimensions, media type, connector, operating liquid, temperature level, viscosity, normal and peak flow, tidy and terminal differential stress, cleaning approach, contamination account, and called for collapse margin to the filter manufacturer.
Then demand a documented suit– not an aesthetically similar cartridge and not a sales assure.
For application-specific PE, HDPE, PTFE, micron-rating, end-cap, and real estate configurations, call Lvyuan with the operating envelope and failure proof. The right conversation starts with pressure, circulation, chemistry, temperature level, and support structure. It does not start with cost.
